K-FACTOR 8.0 - STANDARD

K-FACTOR 8.0 - STANDARD

Standard Response (K8.0)

Model Overview

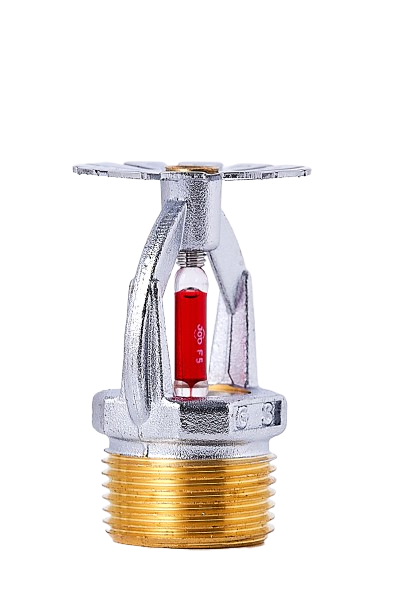

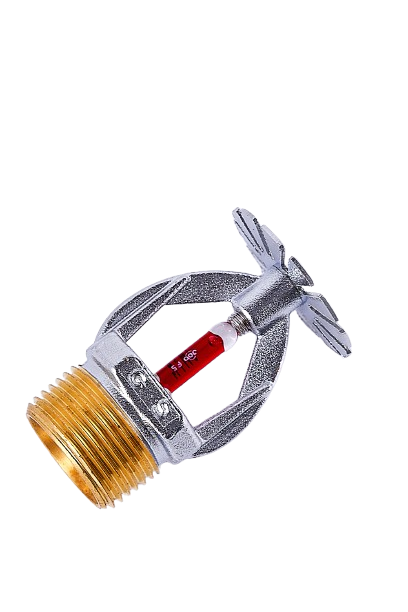

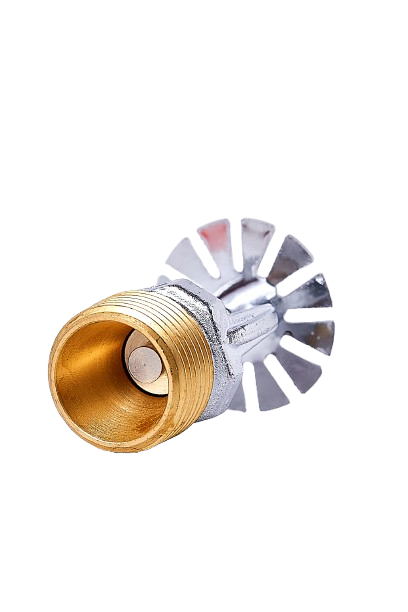

• GS281 – Upright Type

• GS282 – Pendent Type

• K-Factor: 8.0 (115 L/min/bar¹⁄²)

• Response: Standard Response (5mm glass bulb)

Key Features

• Larger K-Factor: Provides higher discharge rate for greater coverage

• Dual Configuration: Available in both upright and pendent models

• Compact Design: Space-efficient, suitable for modern ceiling layouts

• Heat-Sensitive Activation: Activates via 5mm glass bulb

• Escutcheon Compatibility: Use with adjustable/non-adjustable plates for clean finish

Contact now

Product Catalog: K-FACTOR 8.0

Available Temperature Ratings

• 68°C (155°F)

• 93°C (200°F)

Technical Specifications

• Thread Size: ¾" NPT

• Max Working Pressure: 175 psi (12 bar)

• Orientation:

o GS281 – Upright (arms parallel to branch line)

o GS282 – Pendent (arms perpendicular to ceiling)

• Materials

o Frame, Deflector, Plug, Screw: Brass

o Bulb: Glass (5mm)

o Seal: Rubber
