HORIZONTAL SIDEWALL SPRINKLER K8.0

HORIZONTAL SIDEWALL SPRINKLER K8.0

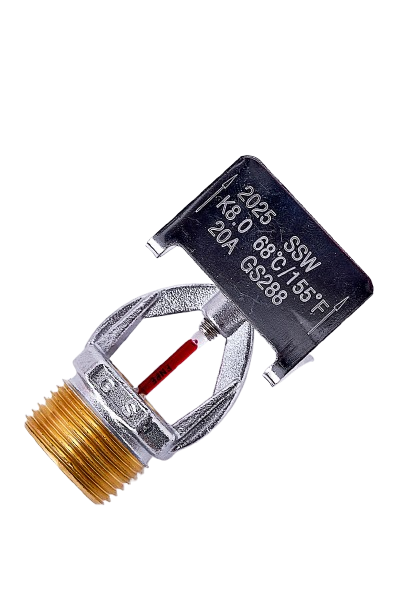

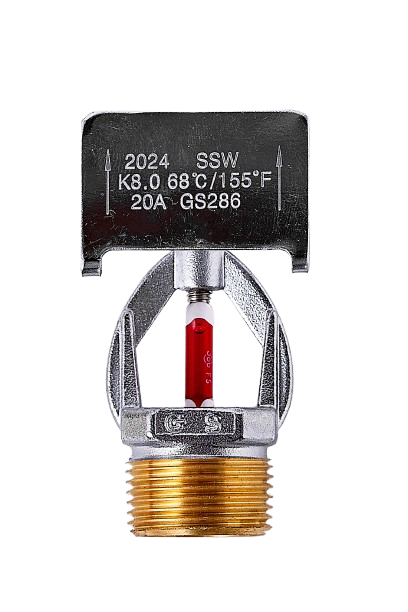

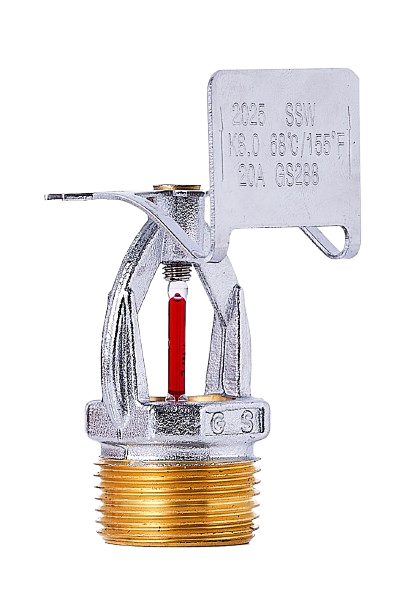

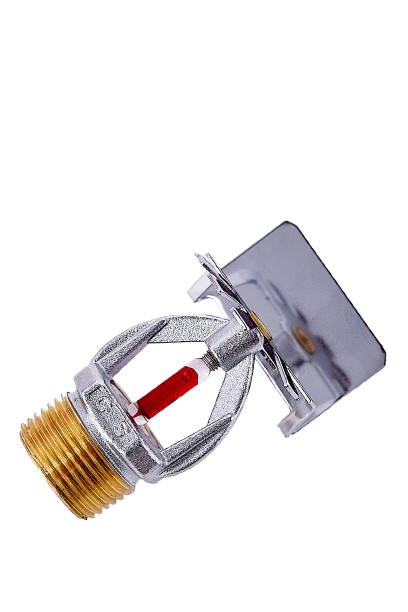

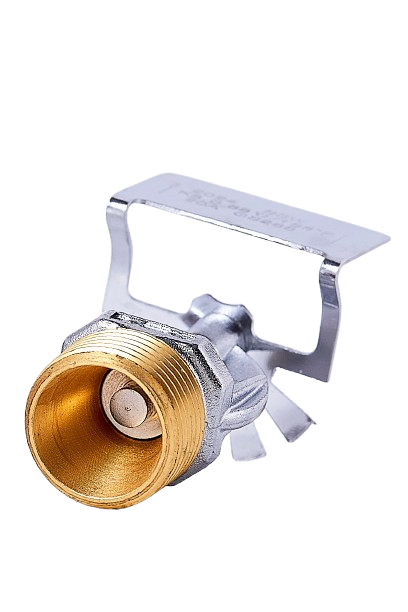

Model: GS286 (Standard Response) / GS288 (Quick Response)

K-Factor 8.0 | 3/4” NPT | High-Flow Wall-Mount Design

Key Features

• K-Factor: 8.0 (115 L/min/bar^0.5)

• Orientation: Horizontal Sidewall

• Response Options:

o GS286: Standard Response (5 mm glass bulb)

o GS288: Quick Response (3 mm glass bulb)

• Temperature Ratings:

o 155°F (68°C)

o 200°F (93°C)

o 286°F (141°C)

• Thread Size: 3/4” NPT

• Max Working Pressure: 175 psi (12 bar)

• Construction:

o Body/Deflector/Plug/Compression Screw: Brass

o Seal: Rubber

o Bulb: Heat-sensitive glass

• Finish: Corrosion-resistant options available

• Tools: Use W-Type 34 sprinkler wrench

Contact now

Product Catalog: K-FACTOR 8.0

Applications

• Commercial/industrial walls requiring higher flow

• Warehouses, production areas, large corridors

• Alternative to ceiling sprinklers where pipe exposure is limited
