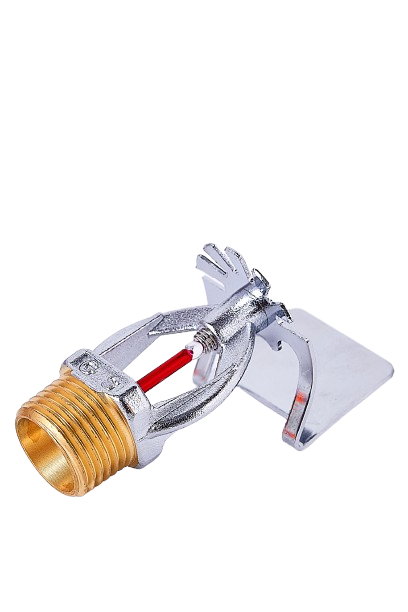

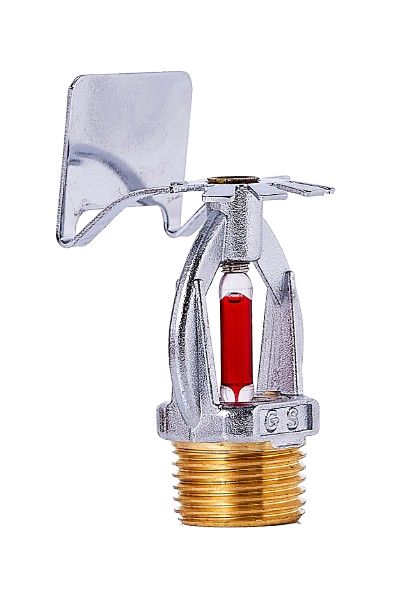

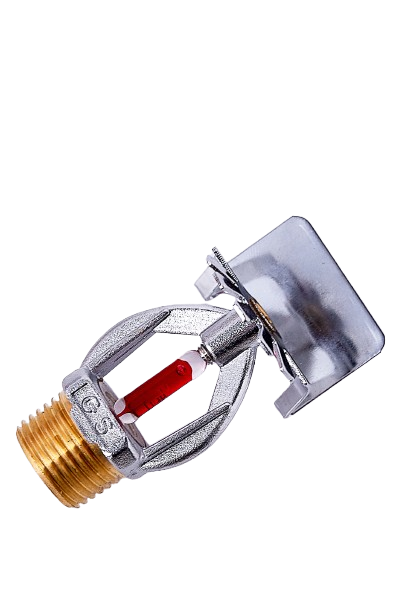

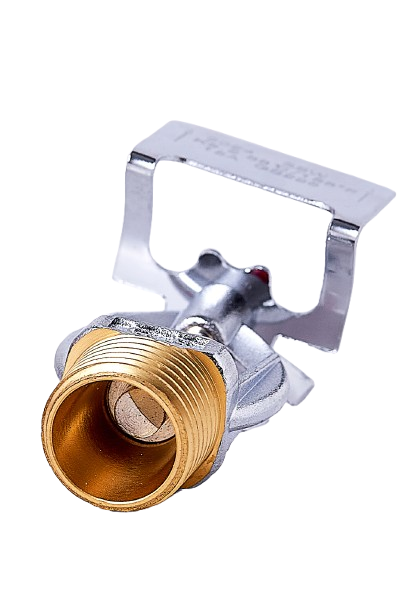

SPRINKLER HEAD K5.6- HORIZONTAL SIDEWALL

SPRINKLER HEAD K5.6- HORIZONTAL SIDEWALL

• GS256 – Standard Response

• GS258 – Quick Response

• Sprinkler Type: Horizontal Sidewall

• K-Factor: 5.6 (80 L/min/bar¹⁄²)

• Application: Sidewall-mounted sprinkler for wall/beam areas

Key Features

• Wall-Mounted Design: Ideal for spaces where ceiling piping is not feasible

• Neat Aesthetic: Blends into architectural features such as beams or walls

• Dual Options: Available in standard and quick response models

• Glass Bulb Activation: Heat-responsive 3mm or 5mm glass bulbs

• Corrosion-Resistant Coating: Available for harsh environment

Contact now

Product Catalog: K-FACTOR 5.6

Temperature Ratings

68°C (155°F)
93°C (200°F)
141°C (286°F)

Technical Specifications

Thread Size: ½" NPT
Max Working Pressure: 175 psi (12 bar)
Orientation: Sidewall (horizontal installation)

Materials:

Frame, Deflector, Plug, Screw: Brass
Bulb: Glass (3mm or 5mm)
Seal: Rubber
